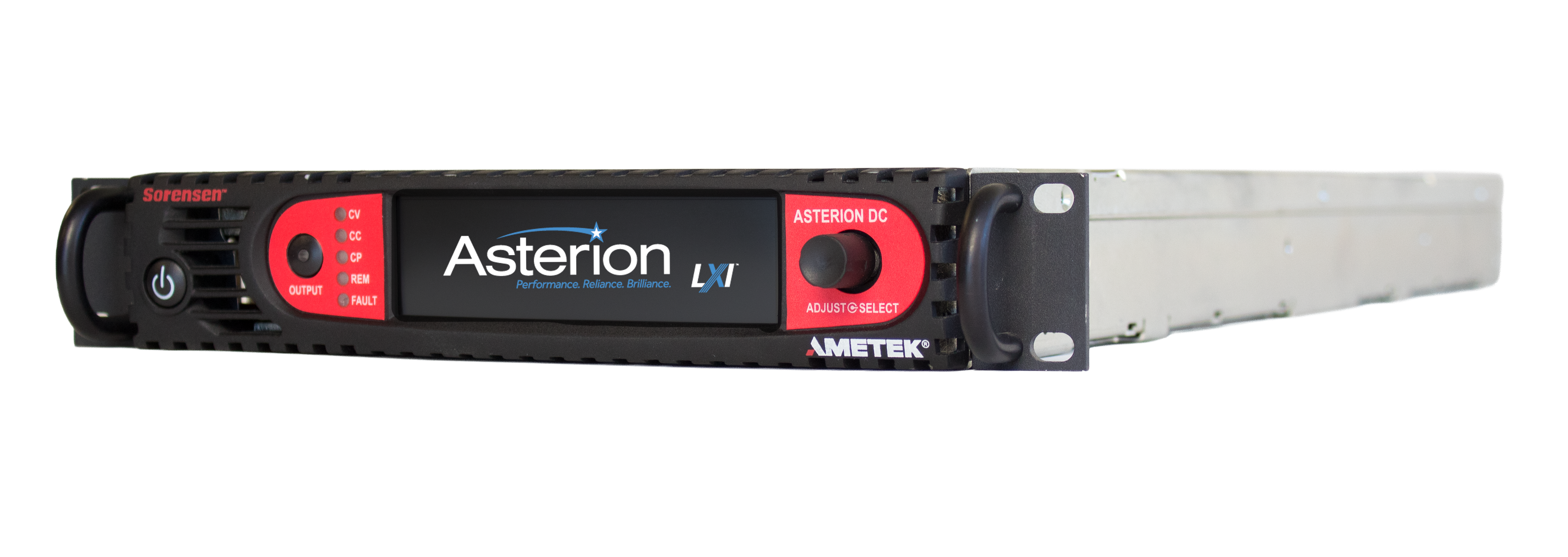

Asterion DC Half-Rack Series
| Model: Asterion DC Half-Rack Series Voltage: 40 V, 60 V, 80 V, 100 V, 150 V, 200 V, 300 V, 400 V & 600 V Power: 1.7 kW Overview: Compact, high-performance programmable DC power supplies Now available for pre-order |
 |
-
Overview
-
Manuals
-
Data Sheets
-
Software
-
Part No.
-
Videos
The Sorensen Asterion DC Half-Rack Series by AMETEK Programmable Power delivers the intelligence, flexibility, and precision of the proven Asterion platform in a compact 1U half-rack form factor. Designed as a more affordable entry point into the Asterion family, the Half-Rack Series provides 1.7 kW of programmable DC output power while maintaining the advanced control, connectivity, and reliability required for modern test environments. Available in both Fixed Range and Autoranging models, the Asterion DC Half-Rack allows users to balance cost, performance, and flexibility:
- Fixed Range models offer an economical solution for applications with well-defined voltage and current requirements.
- Autoranging models provide expanded voltage and current coverage at full power, reducing the need to purchase multiple supplies.
With its high power density, intuitive touchscreen interface, and broad control interface support, the Asterion DC Half-Rack is ideal for customers who need Asterion-class performance in a smaller, more cost-effective package.
Advanced Features
- High power density 1.7 kW DC power supply in a 1U half-rack chassis
- Available in Fixed Range or Autoranging output configurations
- Intuitive front panel touchscreen with rotary encoder control
- Constant Voltage (CV), Constant Current (CC), and Constant Power (CP) operating modes
- Full remote control via DC Virtual Panels™ graphical user interface
- Multi-language display for global operation
- Parallel capability for higher power systems
- Optional isolated analog programming and monitoring
Control via Front Panel Touchscreen & Digital Interfaces
The Asterion DC Half-Rack Series can be operated locally from its intuitive front panel touchscreen or remotely through standard digital control interfaces. Users can program, monitor, and control the supply using:
- Ethernet (LXI compliant)
- USB
- RS232
- Optional GPIB or EtherCAT
The touchscreen menu structure provides quick access to Dashboard monitoring, output programming, measurements, ramp functions, configuration settings, and system status. A dynamic rate-change algorithm enables precise fine adjustments while allowing rapid changes across the full operating range.
Applications |
|
|---|---|
| The compact size and advanced feature set of the Asterion DC HalfRack make it wellsuited for a wide range of applications, including: | |
| Automated test equipment (ATE) | Product validation and compliance testing |
| Battery and power device testing | Automotive electronics |
| Telecommunications and commercial electronics | Research and development laboratories |
| Rack-mount test systems |
|
Asterion DC Virtual Panels (Graphical User Interface)
Asterion DC Virtual Panels provide a powerful graphical user interface for remote operation of the Half‑Rack Series. All functions available on the front panel—including output programming, monitoring, sequencing, and configuration—can be accessed remotely, enabling flexible integration into automated test systems and remote labs.
Explore Asterion DC Series Related Resources
White Papers, Application Notes, and Guides
Programmable Power Supplies Keep Racing Team on Track
Programmable Sources and Loads Augment Wind-Turbine Development and Test
Reliable, Stable Programmable Power Drives Advanced Semiconductor Equipment

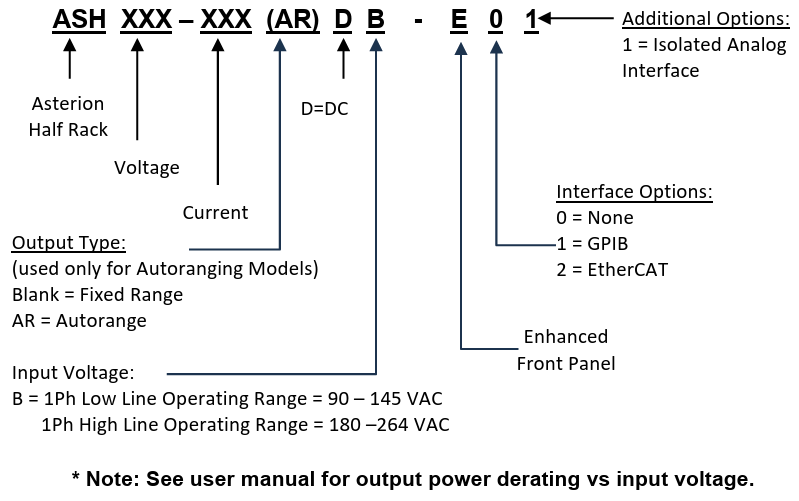

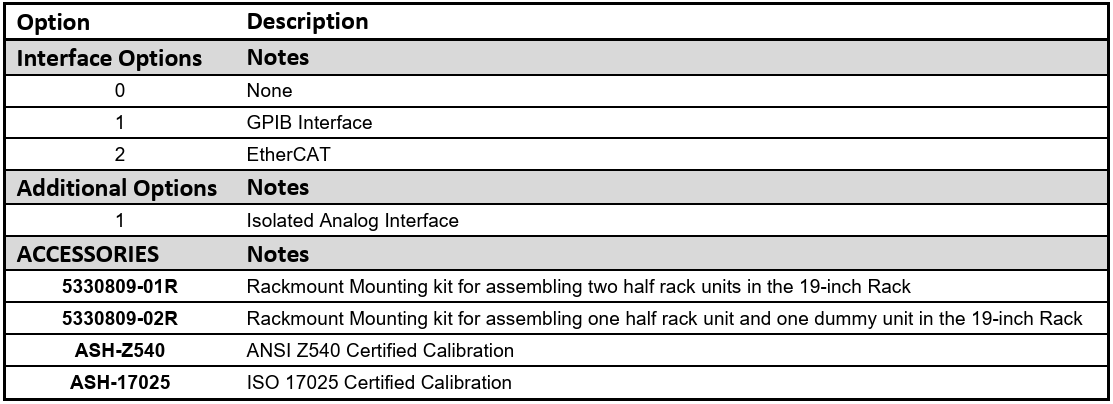

Order Information
