SGX Series

Model: SGX Series
Voltage10V - 1000V
Power5kW - 30kW
OverviewHigh Power Modular DC Power Supplies

Request A Quote

  • Overview
  • Manuals
  • Data Sheets
  • Software
  • Drivers
  • Other
  • Part No.

The Sorensen SGX Series represents the next generation of high power programmable DC power supplies. The SGX Series is designed for exceptional load transient response, low noise and the highest power density in the industry. With a full 15 kW available down to 20 V output in a 3U package the SGX leads the industry in power density. The power density is enhanced by a stylish front air intake allowing supplies to be stacked without any required clearance between units.

At the heart of the SGX series is a 5 kW power module. Depending on the output voltage, one to six modules can be configured in a single chassis to deliver 5 kW to 30 kW of power.

Combinations of these chassis can then be easily paralleled to achieve power levels up to 150 kW. Paralleled units operate like one single supply providing total system current.

Advanced Intelligent Control

The SGX Series is operated from the intuitive, easy-to-use front panel touch screen display. Quickly access output programming parameters, measurements, sequencing, configuration and system settings from the touch screen interface. Functions and parameters can be directly selected from the touch screen or by using the encoder selector button. The control resolution is adjusted by a dynamic rate change algorithm that combines the benefits of precise control over small parameter changes with quick sweeps through the entire range.

Additionally, the instrument can be controlled via LXI Ethernet and RS232 standard control interfaces, as well as through the optional GPIB control interface

SGX / SGI Comparison Chart
Feature SGX SGI
Modular Design
Fast Load Transient
Parallelable
Analog & Digital Summing
Direct Front Panel V/1 Control
Touch Screen
Sequencing
Save / Recall Setups
System Power Readouts
Constant Power Mode
RS-232C Standard Standard
LXI Class C Ethernet Standard Optional
GPIB Optional Optional
Applications
Burn-In Compliance Testing
Materials Research Process Control
Product Validation Automotive Electronics
Rackmount ATE Systems Battery Charging
See the SFA product page for very high current slew rate and low stored energy applications.
SGX Programming Manual Rev A
SGX Operations Manual M551600-01 Rev C
SGX Programming Manual Rev A
Title
Document
Download
SGX Programming Manual Rev A
DocumentSGX Programming Manual Rev A
SGX Operations Manual M551600-01 Rev C
DocumentSGX Operations Manual M551600-01 Rev C
SGX Programming Manual Rev A
DocumentSGX Programming Manual Rev A
SGX Series Datasheet
Title
Document
Download
SGX Series Datasheet
DocumentSGX Series Datasheet
DC Virtual Panels V1.0.10 for Microsoft Windows 7/8/10
SGX GPIB Firmware Flash Loader V1.2.0 (RS232 Only)
SGX Master Firmware Flash Loader V1 3 0 (Ethernet Only)
SGX Master Firmware V1.56 (Requires SGX Master Firmware Flash Loader V1.3.0 Utility to Install) - Use only if the unit's existing firmware is Version less than V5.00
SGX Master Firmware V5.00 (Requires SGX Master Firmware Flash Loader V1.3.0 Utility to Install) - Use only if the unit's existing firmware is Version V5.00 and above
SGX Slave Firmware Flash Loader V1 2 0 (RS232 Only)
Title
Document
Download
DC Virtual Panels V1.0.10 for Microsoft Windows 7/8/10
DocumentDC Virtual Panels V1.0.10 for Microsoft Windows 7/8/10
SGX GPIB Firmware Flash Loader V1.2.0 (RS232 Only)
DocumentSGX GPIB Firmware Flash Loader V1.2.0 (RS232 Only)
SGX Master Firmware Flash Loader V1 3 0 (Ethernet Only)
DocumentSGX Master Firmware Flash Loader V1 3 0 (Ethernet Only)
SGX Master Firmware V1.56 (Requires SGX Master Firmware Flash Loader V1.3.0 Utility to Install) - Use only if the unit's existing firmware is Version less than V5.00
DocumentSGX Master Firmware V1.56(Requires SGX Master Firmware Flash Loader V1.3.0 Utility to Install) - Use only if the unit's existing firmware is Version less than V5.00
SGX Master Firmware V5.00 (Requires SGX Master Firmware Flash Loader V1.3.0 Utility to Install) - Use only if the unit's existing firmware is Version V5.00 and above
Document SGX Master Firmware V5.00 (Requires SGX Master Firmware Flash Loader V1.3.0 Utility to Install) - Use only if the unit's existing firmware is Version V5.00 and above
SGX Slave Firmware Flash Loader V1 2 0 (RS232 Only)
DocumentSGX Slave Firmware Flash Loader V1 2 0 (RS232 Only)
SG Series LabVIEW Driver
Sorensen Labview Driver V1.0 - Labview 2012 for Microsoft Windows 7/8/10 (32-bit)
Sorensen Labview Driver V1.0 - Labview 2012 for Microsoft Windows 7/8/10 (64-bit)
Sorensen Labview Driver V1.0 - Labview 2013 for Microsoft Windows 7/8/10 (32-bit)
Sorensen Labview Driver V1.0 - Labview 2013 for Microsoft Windows 7/8/10 (64-bit)
Title
Document
Download
SG Series LabVIEW Driver
DocumentSG Series LabVIEW Driver
Sorensen Labview Driver V1.0 - Labview 2012 for Microsoft Windows 7/8/10 (32-bit)
DocumentSorensen Labview Driver V1.0 - Labview 2012 for Microsoft Windows 7/8/10 (32-bit)
Sorensen Labview Driver V1.0 - Labview 2012 for Microsoft Windows 7/8/10 (64-bit)
DocumentSorensen Labview Driver V1.0 - Labview 2012 for Microsoft Windows 7/8/10 (64-bit)
Sorensen Labview Driver V1.0 - Labview 2013 for Microsoft Windows 7/8/10 (32-bit)
DocumentSorensen Labview Driver V1.0 - Labview 2013 for Microsoft Windows 7/8/10 (32-bit)
Sorensen Labview Driver V1.0 - Labview 2013 for Microsoft Windows 7/8/10 (64-bit)
DocumentSorensen Labview Driver V1.0 - Labview 2013 for Microsoft Windows 7/8/10 (64-bit)
Communication Verification Ethernet
Communication Verification GPIB
Communication Verification RS232
Load Line Drop Regulation Test
Title
Document
Download
Communication Verification Ethernet
DocumentCommunication Verification Ethernet
Communication Verification GPIB
DocumentCommunication Verification GPIB
Communication Verification RS232
DocumentCommunication Verification RS232
Load Line Drop Regulation Test
DocumentLoad Line Drop Regulation Test

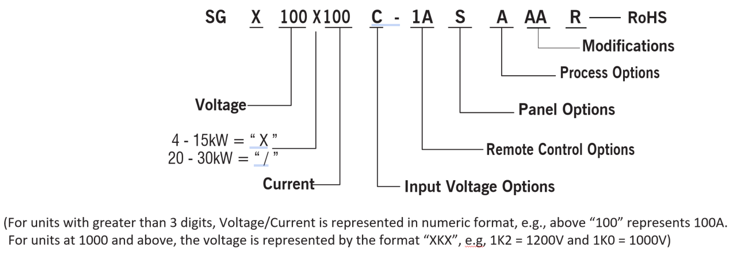

SGX : Model Number Description


Options and Accessories
Input Voltage Options
C Input Voltage 187 / 242VAC
D Input Voltage 342 / 440VAC
E Input Voltage 396 / 528VAC
Remote Control Options
0A No Options
1A IEEE-488.2 + RS-232C (RS-232 comes standard on SGI
1D Isolated Analog Control
2A Combined Options 1A + 1D
Panel Options
S Standard
N No Display
Process Options
AA No Options
AB AB: Certificate of Calibration to ANSI / NCSL Z540-1 (includes Test Data)
Modifications
CV 400Hz AC input @ 208 VAC ( does not carry CE, CSA or UL marks ) ( 6U only ) STD on 3U
PF Passive power factor correction to 0.9 (Only applicable to 40V, 60V to 800V. Included in 10V-30V, 50V and 1000V.)
RoHS
R Add an 'R' to the model number for RoHS compliant version. Leave blank if RoHS version is not required.
Accessories
890-453-03 Paralleling Cable (for up to 5 units, requires one cable per unit placed in parallel)
K550212-01 3U Rack Slides (for 5kW, 10kW and 15kW models)
K550213-01 6U Rack Slides (for 20kW, 25kW and 30kW models)
5551082-01 Optional AC input cover kit - 3U unit only
Contact factory for other combinations
