DLM 600

ModelDLM 600
Voltage: 5V - 300V
Current: 2A - 75A
Power: 375W - 600W
Overview1/2 Rack Programmable DC Power Supplies

Request A Quote


  • Overview
  • Manuals
  • Data Sheets
  • Software
  • Drivers
  • Other
  • Part No.
The Sorensen DLM 600 series of programmable power supplies is designed to provide continuously variable output voltage and current for a broad range of applications in a compact 1U (1.75 inches) high, half-rack (8.5 inch) wide chassis.

With the use of Zero Voltage Switching (ZVS) technology, these supplies are able to achieve exceptionally low ripple and noise rivaling larger and more expensive linear power supplies. In addition, the high efficiency and fast load transient response assure that the DLM 600 is ideal for even the most demanding applications.

The DLM 600 power supply series is ideal for high density multiple output rackmount requirements or low profile benchtop applications. Output voltages from 0-5VDC to 0-300VDC and currents from 0-2A to 0-75A are available.

The cooling air intake is at the front and sides with exhaust at the rear and sides. Variable speed fans are controlled as a function of ambient air temperature and load, thus reducing acoustic noise and increasing fan life. This allows supplies to be stacked one directly on top of another without space in between, yielding maximum rackmount packing density and a wide operating temperature of 0-50° C. An optional rackmount kit is available to easily mount one or two units side-by-side.

The front panel layout makes the DLM 600 power supply series easy to use. Voltage and current can be set from individual 10-turn potentiometer knobs. Control push buttons include power on, output on, local/remote, voltage/current preview and overvoltage protection preview. Set-point or actual voltage/ current values can be viewed on two 3-1/2 digit LED displays.

DLM 600 near-linear DC power supplies can be connected in series or parallel. All models automatically accept any standard single phase input without manual set up.


Features and Benefits


High Power Density

600 watts in 1U (1.75 inches) high, half rack (8.5 inches) wide; no top or bottom clearance spacing required.

Near Linear Ripple & Noise
Ripple as low as 2.5mV rms, noise as low as 15mV p-p.

Remote Control

  • 16 bit programming through LXI -compliant Ethernet LAN / RS-232C (Option M130)
  • 12-bit programming through IEEE-488.2 / RS-232C (Option M9G)
  • Standard analog programming 0-5V, 0-10V, or 0-5kΩ.
  • isolated analog programming (option)



Pushbutton Preview
Overvoltage protection, voltage and current preview buttons allow viewing these set points at any time with or without the output enabled

Active Down Programming
Standard internal circuitry to speed up response time to down programming changes

Universal AC input

Easy leader/follower paralleling with active current sharing

Software

  • IVI-com driver for M130 option
  • Labwindows CVI driver for M9G option
  • Labview driver for M9G option



5 Year Warranty

M130/131 Ethernet Option Manual Rev F
M51A Option Manual
M6 Option for M9/M130/M131 Rev E
M9 Option Manual rev N
Operations Manual Rev K
Title
Document
Download
M130/131 Ethernet Option Manual Rev F
DocumentM130/131 Ethernet Option Manual Rev F
M51A Option Manual
DocumentM51A Option Manual
M6 Option for M9/M130/M131 Rev E
DocumentM6 Option for M9/M130/M131 Rev E
M9 Option Manual rev N
DocumentM9 Option Manual rev N
Operations Manual Rev K
DocumentOperations Manual Rev K
DLM 600 Series Data Sheet
Title
Document
Download
DLM 600 Series Data Sheet
DocumentDLM 600 Series Data Sheet
DC Virtual Panels V1.0.10 for Microsoft Windows 7/8/10
DLM_DCS M130 Ethernet FLash Upgrade Utility V1.0 for Microsoft Windows 7/8/10 (32-bit, 64-bit)
DLM_DCS Master Firmware V2.42 NOTE: Use with DLM_DCS M130 Ethernet Flash Upgrade Utility V1.0
LXI Discovery Browser
M9 GUI ³
M130 GUI ³
IVI-COM w/IVI-C wrapper (ethernet or RS-232 or GPIB) V2.1.9 32-bit
IVI-COM w/IVI-C wrapper (ethernet or RS-232 or GPIB) V2.1.9 64-bit
Title
Document
Download
DC Virtual Panels V1.0.10 for Microsoft Windows 7/8/10
DocumentDC Virtual Panels V1.0.10 for Microsoft Windows 7/8/10
DLM_DCS M130 Ethernet FLash Upgrade Utility V1.0 for Microsoft Windows 7/8/10 (32-bit, 64-bit)
DocumentDLM_DCS M130 Ethernet FLash Upgrade Utility V1.0 for Microsoft Windows 7/8/10 (32-bit, 64-bit)
DLM_DCS Master Firmware V2.42 NOTE: Use with DLM_DCS M130 Ethernet Flash Upgrade Utility V1.0
DocumentDLM_DCS Master Firmware V2.42 NOTE: Use with DLM_DCS M130 Ethernet Flash Upgrade Utility V1.0
LXI Discovery Browser
DocumentLXI Discovery Browser
M9 GUI ³
DocumentM9 GUI ³
M130 GUI ³
DocumentM130 GUI ³
IVI-COM w/IVI-C wrapper (ethernet or RS-232 or GPIB) V2.1.9 32-bit
DocumentIVI-COM w/IVI-C wrapper (ethernet or RS-232 or GPIB) V2.1.9 32-bit
IVI-COM w/IVI-C wrapper (ethernet or RS-232 or GPIB) V2.1.9 64-bit
DocumentIVI-COM w/IVI-C wrapper (ethernet or RS-232 or GPIB) V2.1.9 64-bit
Sorensen Labview Driver V1.0 - Labview 2012 for Microsoft Windows 7/8/10 (32-bit)
Sorensen Labview Driver V1.0 - Labview 2012 for Microsoft Windows 7/8/10 (64-bit)
Sorensen Labview Driver V1.0 - Labview 2013 for Microsoft Windows 7/8/10 (32-bit)
Sorensen Labview Driver V1.0 - Labview 2013 for Microsoft Windows 7/8/10 (64-bit)
Title
Document
Download
Sorensen Labview Driver V1.0 - Labview 2012 for Microsoft Windows 7/8/10 (32-bit)
DocumentSorensen Labview Driver V1.0 - Labview 2012 for Microsoft Windows 7/8/10 (32-bit)
Sorensen Labview Driver V1.0 - Labview 2012 for Microsoft Windows 7/8/10 (64-bit)
DocumentSorensen Labview Driver V1.0 - Labview 2012 for Microsoft Windows 7/8/10 (64-bit)
Sorensen Labview Driver V1.0 - Labview 2013 for Microsoft Windows 7/8/10 (32-bit)
DocumentSorensen Labview Driver V1.0 - Labview 2013 for Microsoft Windows 7/8/10 (32-bit)
Sorensen Labview Driver V1.0 - Labview 2013 for Microsoft Windows 7/8/10 (64-bit)
DocumentSorensen Labview Driver V1.0 - Labview 2013 for Microsoft Windows 7/8/10 (64-bit)
DLM 600 FAQs
DLM/DCS/SGA/SGI SRQ Generation
Title
Document
Download
DLM 600 FAQs
DocumentDLM 600 FAQs
DLM/DCS/SGA/SGI SRQ Generation
DocumentDLM/DCS/SGA/SGI SRQ Generation

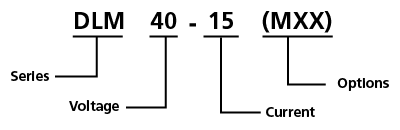

DLM600 : Model Number Description

Output: Voltage and Current Ranges
Model Voltage Current
DLM 5-75 0-5V 0-75A
DLM 8-75 0-8V 0-75A
DLM 10-60 0-10V 0-60A
DLM 20-30 0-20V 0-30A
DLM 40-15 0-40V 0-15A
DLM 60-10 0-60V 0-10A
DLM 80-7.5 0-80V 0-7.5A
DLM 150-4 0-150V 0-4A
DLM 300-2 0-300V 0-2A
Input
M130

Ethernet/LAN Option
• LXI Compliant
• 10/100 base-T
• TCP/IP Protocol
• ICMP (Ping Server)
• Web Server: Direct control of power supply via standard web browser.
RS-232C Interface

M6 Disconnect & Polarity reversal relays (10V to 300V models only. This option requires one of the following options: M9G, M85, M130 or M131) Output disconnect and polarity reversal relays controlled via SCPI commands. An SPST relay is in line with each output lead.
M9G IEEE-488.2 and RS-232C Interfaces
M13 Locking shafts (front panel potentiometers)
M51A Optically Isolated analog Programming and Monitoring. This isolation allows users to control power supplies not connected to a common ground. In addition, in systems with high ambient noise or with large ground loop currents the control ground can be isolated from the power ground eliminating problems.
M85 Multichannel Slave Interface
M131 Multichannel Slave Interface (16 bit) (M130 Master ONLY)
DLMRK Rackmount Kit for single DLM with filler panel and for two units mounted side-by-side
