DLM 3-4 kW

ModelDLM Series
Voltage5V - 600V
Current: 5A - 450A
Power3kW - 4kW
Overview: Programmable DC Power Supplies

Request A Quote


  • Overview
  • Manuals
  • Data Sheets
  • Software
  • Drivers
  • Other
  • Part No.

The Sorensen DLM 3kW and 4kW Series programmable DC power supplies are designed to provide highly stable, continuously variable output voltage and current for a broad range of applications in a compact 2U ( 3½” high) chassis.

Both the 3 kW and 4 kW models have output voltages from 0-5 VDC to 0-600 VDC and a current range from 0-5A to 0-450A. The output rms noise is as low as 10 mV. The output will recover to 1% of its steady-state voltage within 1 ms for a step load change of 100% to 70% or 70% to 100%. The front panel layout makes the series extremely easy to use. Control switches include: power on, enable/ standby and local/ remote.

Displays and indicators show programmed set points and operational control status. The programmed voltage, current and overvoltage set points are displayed with two large 3½ digit LED displays. Operational Status LEDs indicate power on, shutdown, over temperature, overvoltage, constant current and voltage mode status. Control Status LEDs indicate front panel lockout, remote control and standby status. IEEE- 488.2 control LEDs indicate error, service request and remote address status.

The 3 kW Models will accept 200*/230 VAC single phase and 200*/208 VAC three phase input power.

The 4 kW Models will accept 200*/208 VAC, three phase or optional 400 or
480 VAC three phase input power.

*Operating temperature below 40°C

Features and Benefits

High Power Density

3 kW and 4 kW models, 2U (3½ inches) high, 19 inches wide; no top or bottom clearance spacing required

Wide Range of Output Voltages
3 kW and 4 kW outputs 0-5V, 8V, 16V, 32V, 40V, 60V, 80V, 150V, 300V and 600V

Preview Pushbutton
Overvoltage protection (OVP), voltage and current preview buttons allow viewing these set points at any time with or without the output enabled

Remote Voltage Sense
Sense leads are easily connected to a solderless connector

Remote Operation
  • Standard analog programming
  • Output enable/disable remotely
  • Optional IEEE-488.2 and RS 232
  • Optional optically isolated analog programming


Calibration

All models can be calibrated without removing the covers

Operating Modes
Constant voltage and constant current, with LED indicators

Parallel or Series Operation
Field configurable

Input Power Factor
0.95 typical (three phase for all models) 0.98 typical (single phase)

CE Mark

5 Year Warranty

DLM Operations Manual 3kW
DLM Operations Manual 4kW
M51A Option Manual 3kW
M51A Option Manual 4kW
M9 Option Manual rev N 3kW
M9 Option Manual rev N 4kW
Title
Document
Download
DLM Operations Manual 3kW
DocumentDLM Operations Manual 3kW
DLM Operations Manual 4kW
DocumentDLM Operations Manual 4kW
M51A Option Manual 3kW
DocumentM51A Option Manual 3kW
M51A Option Manual 4kW
DocumentM51A Option Manual 4kW
M9 Option Manual rev N 3kW
DocumentM9 Option Manual rev N 3kW
M9 Option Manual rev N 4kW
DocumentM9 Option Manual rev N 4kW
DLM 3kW & 4kW Series Data Sheet
Title
Document
Download
DLM 3kW & 4kW Series Data Sheet
DocumentDLM 3kW & 4kW Series Data Sheet
DC Virtual Panels V1.0.10 for Microsoft Windows 7/8/10
DLM M9 GUI ³ 3KW
DLM M9 GUI 4kw
LabVIEW V8.X 3kw
LabVIEW V8.X 4kw
IVI-COM w/IVI-C wrapper (ethernet or RS-232 or GPIB) V2.1.9 32-bit
IVI-COM w/IVI-C wrapper (ethernet or RS-232 or GPIB) V2.1.9 64-bit
Title
Document
Download
DC Virtual Panels V1.0.10 for Microsoft Windows 7/8/10
DocumentDC Virtual Panels V1.0.10 for Microsoft Windows 7/8/10
DLM M9 GUI ³ 3KW
DocumentDLM M9 GUI ³ 3KW
DLM M9 GUI 4kw
DocumentDLM M9 GUI 4kw
LabVIEW V8.X 3kw
DocumentLabVIEW V8.X 3kw
LabVIEW V8.X 4kw
DocumentLabVIEW V8.X 4kw
IVI-COM w/IVI-C wrapper (ethernet or RS-232 or GPIB) V2.1.9 32-bit
DocumentIVI-COM w/IVI-C wrapper (ethernet or RS-232 or GPIB) V2.1.9 32-bit
IVI-COM w/IVI-C wrapper (ethernet or RS-232 or GPIB) V2.1.9 64-bit
DocumentIVI-COM w/IVI-C wrapper (ethernet or RS-232 or GPIB) V2.1.9 64-bit
Sorensen Labview Driver V1.0 - Labview 2012 for Microsoft Windows 7/8/10 (32-bit)
Sorensen Labview Driver V1.0 - Labview 2012 for Microsoft Windows 7/8/10 (64-bit)
Sorensen Labview Driver V1.0 - Labview 2013 for Microsoft Windows 7/8/10 (32-bit)
Sorensen Labview Driver V1.0 - Labview 2013 for Microsoft Windows 7/8/10 (64-bit)
Title
Document
Download
Sorensen Labview Driver V1.0 - Labview 2012 for Microsoft Windows 7/8/10 (32-bit)
DocumentSorensen Labview Driver V1.0 - Labview 2012 for Microsoft Windows 7/8/10 (32-bit)
Sorensen Labview Driver V1.0 - Labview 2012 for Microsoft Windows 7/8/10 (64-bit)
DocumentSorensen Labview Driver V1.0 - Labview 2012 for Microsoft Windows 7/8/10 (64-bit)
Sorensen Labview Driver V1.0 - Labview 2013 for Microsoft Windows 7/8/10 (32-bit)
DocumentSorensen Labview Driver V1.0 - Labview 2013 for Microsoft Windows 7/8/10 (32-bit)
Sorensen Labview Driver V1.0 - Labview 2013 for Microsoft Windows 7/8/10 (64-bit)
DocumentSorensen Labview Driver V1.0 - Labview 2013 for Microsoft Windows 7/8/10 (64-bit)
DLM 3kW & 4kW FAQs
Title
Document
Download
DLM 3kW & 4kW FAQs
DocumentDLM 3kW & 4kW FAQs

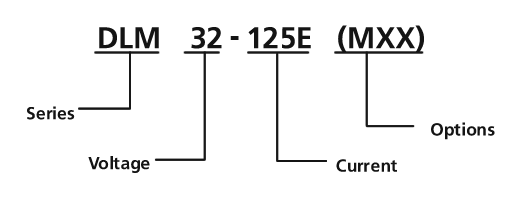

DLM : Model Number Description


Options and Accessories
M1 345-455 VAC, 47-63 Hz, three phase, 3 wire plus ground, Delta or Wye may be used (4 kW only)
M2 432-528 VAC, 47-63 Hz, three phase, 3 wire plus ground, Delta or Wye may be used (4 kW only)
M9E SCPI compatible IEEE-488.2 and RS 232 interfaces (May not be combined with M51A or M85)
M13 Locking shafts (front panel potentiometers)
M51A Isolated analog programming (May not be combined with M9C or M85). This isolation allows users to control power supplies not connected to a common ground. In addition, in systems with high ambient noise or with large ground loop currents the control ground can be isolated from the power ground eliminating problems.
M85 12-bit slave interface (May not be combined with M9E or M51A)
5361969-01 Paralleling Cable; one cable per slave unit
105-300-26 Rack slide kit
