ASD FLX Series

ModelASD FLX Series
Voltage: 40V–160V
Current167A–8000A
Power10kW–320kW
Overview: Programmable Modular Water-cooled DC Supplies

Request A Quote


  • Overview
  • Manuals
  • Data Sheets
  • Software
  • Part No.

The ASD FLX gets its name from its modular design with front loading modules for easy access and flexible voltage options. The chassis with removable, lightweight modules allows for easy one person installation. Furthermore, this product has a wide range of voltage input, 324 VAC to 528 VAC, giving it the flexibility to be utilized globally in a single configuration.

The ASD FLX with its 3U, 30kW water-cooled packaging provides one of the highest power densities available with outstanding output ripple and noise. The water-cooling allows for use in environments that normally exclude air-cooled power supplies.

Advanced digital controls included in the ASD FLX have the ability to allow you to program slew rates, such as current and voltage, as well as program transient response times to emulate specific recovery times. The ASD FLX optional advanced features also allow you to program different “fault levels”, enabling detection of output cabling, connections or load problems before they cause critical system problems. The factory flight data recorder feature has the ability to record parameters such as voltage, current, power, load impedance, faults and input voltages, allowing the factory to easily determine “why” you had an unexpected outcome.

Advanced features include:

  • Precise programming of voltage and current slew rate for sensitive loads.
  • Industrial field bus interface (Modbus-TCP, Modbus-RTU, Ethernet) enable real-time digital control.
  • Built in power quality monitoring detects and saves input voltage anomalies which can be saved for later diagnostic analysis.
  • Programmable analog interface scaling facilitates integrating the ASD FLX with existing systems easily.
  • Built-in energy meter calculates the delivered energy throughout a process or period of time.]
  • Optional real time clock enables accurate timestamping of events.

ASD FLX User / Programming / Maintenance Manual - M551445-01 revA
Title
Document
Download
ASD FLX User / Programming / Maintenance Manual - M551445-01 revA
DocumentASD FLX User / Programming / Maintenance Manual - M551445-01 revA
ASD FLX Series Data Sheet
Title
Document
Download
ASD FLX Series Data Sheet
DocumentASD FLX Series Data Sheet
ASD Load Firmware V3.400 for Microsoft Windows 7/8/8.1/10
ASD MODBUS Control GUI V1.600 for Microsoft Windows® 7/8/8.1/10
Title
Document
Download
ASD Load Firmware V3.400 for Microsoft Windows 7/8/8.1/10
DocumentASD Load Firmware V3.400 for Microsoft Windows 7/8/8.1/10
ASD MODBUS Control GUI V1.600 for Microsoft Windows® 7/8/8.1/10
DocumentASD MODBUS Control GUI V1.600 for Microsoft Windows® 7/8/8.1/10

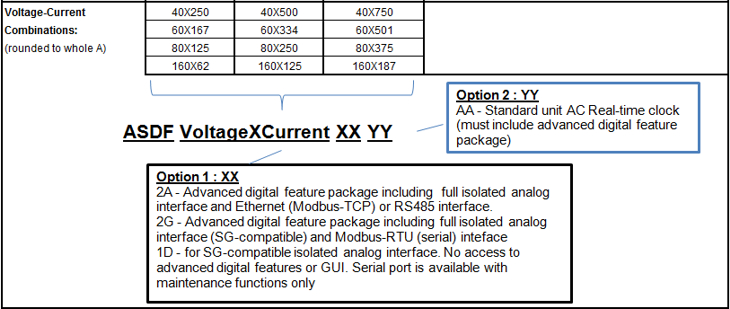

ASD FLX : Model Number Description
