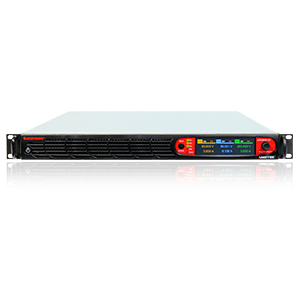

Asterion DC ASM Series

Model: Asterion DC ASM Series
Voltage: 40V to 400V
Power: 3-Channels x 1700W (5100W Total Power)
Overview: Enhanced 3-Channel Programmable DC Power Supplies

Request A Quote
  • Overview
  • Manuals
  • Data Sheets
  • Software
  • Part No.

The Sorensen™ Asterion® DC ASM Series is the newest addition to the Asterion platform of power testing solutions. The new ASM Series features up to three independent, isolated, fixed-range outputs in a 1U high chassis.

The Asterion DC ASM Series, just like the Asterion DC Series, offers complete remote programming and control via Virtual Panels™ GUI, and intuitive front panel touch screen operation. Additionally, the instrument can be controlled via standard LXI Ethernet, USB, and RS232 control interfaces, as well as through the optional GPIB control interface or isolated analog programming.

Key Highlights:

  • Three independent, isolated 1,700W channels, 5,100W total
  • 1U rack-mount chassis
  • Eight output options
  • Multi-language, intuitive, color touch panel control
  • Global 3-Phase AC Input options for system phase balancing
  • Active power factor correction (PFC)
  • Multi-channel programmable sequencing, ramps, and delays
  • Full remote control via Virtual Panels TM GUI
  • Standard LXI Ethernet, USB and RS232 control interfaces
  • Optional GPIB control interface or isolated analog programming

Advanced Intelligent Control

The Asterion DC Series is operated from the intuitive, easy-to-use front panel touch screen display. Quickly access output programming parameters, measurements, configuration and system settings from the touch screen interface. Functions and parameters can be directly selected from the touch screen or by using the encoder selector button. The control resolution is adjusted by a dynamic rate change algorithm that combines the benefits of precise control over small parameter changes with quick sweeps through the entire range.

Applications

The Asterion DC ASM Series is designed for testing today’s complex electronics, including telecommunications and commercial electronics requiring low profile, light weight power supplies with high power density. Other applications include:
  • Military and aerospace electronics test
  • Test & Measurement ATE applications
  • Semiconductor testing and burn-in
  • Commercial manufacturing and process control
  • Research and development
  • Automotive component and battery testing
Asterion DC Multioutput Programming Manual M330517-01 RevC
Asterion ASM Series Operation Manual M330518-01 RevB
Title
Document
Download
Asterion DC Multioutput Programming Manual M330517-01 RevC
DocumentAsterion DC Multioutput Programming Manual M330517-01 RevC
Asterion ASM Series Operation Manual M330518-01 RevB
DocumentAsterion ASM Series Operation Manual M330518-01 RevB
Asterion DC Series ASM Cut Sheet
Asterion DC ASM Series Data Sheet
Title
Document
Download
Asterion DC Series ASM Cut Sheet
DocumentAsterion DC ASM Series Cut Sheet
Asterion DC ASM Series Data Sheet
DocumentAsterion DC ASM Series Data Sheet
ASTDC Firmware Loader V1.5.1 for Microsoft Windows 7/8/10
Asterion DC Multioutput AIB Firmware V4.30 (Requires AST-DC Firmware Updater V1.5.1 Utility to Install)
Asterion DC Multioutput Front Panel Display Firmware V5.01 (Use AST-DC firmware updater V1.5.1) Note: Only use if the unit existing display firmware Version is V5.00 and above
Asterion DC Multioutput Master Firmware V3.131 (Use AST-DC firmware updater V1.5.1) Note: use Only if the unit existing display firmware Version is less than V5.000
Asterion DC Multioutput Master Firmware V5.000 (Use AST-DC firmware updater V1.5.1) Note: Only use if the unit existing display firmware Version is V5.000 and above
Asterion DC Multioutput Virtual Panels V1.1.2
IVI-COM w/IVI-C wrapper (ethernet or RS-232 or GPIB) V2.1.9 32-bit
IVI-COM w/IVI-C wrapper (ethernet or RS-232 or GPIB) V2.1.9 64-bit
Title
Document
Download
ASTDC Firmware Loader V1.5.1 for Microsoft Windows 7/8/10
DocumentASTDC Firmware Loader V1.5.1 for Microsoft Windows 7/8/10
Asterion DC Multioutput AIB Firmware V4.30 (Requires AST-DC Firmware Updater V1.5.1 Utility to Install)
DocumentAsterion DC Multioutput AIB Firmware V4.30 (Requires AST-DC Firmware Updater V1.5.1 Utility to Install)
Asterion DC Multioutput Front Panel Display Firmware V5.01 (Use AST-DC firmware updater V1.5.1) Note: Only use if the unit existing display firmware Version is V5.00 and above
DocumentAsterion DC Multioutput Front Panel Display Firmware V5.01 (Use AST-DC firmware updater V1.5.1) Note: Only use if the unit existing display firmware Version is V5.00 and above
Asterion DC Multioutput Master Firmware V3.131 (Use AST-DC firmware updater V1.5.1) Note: use Only if the unit existing display firmware Version is less than V5.000
DocumentAsterion DC Multioutput Master Firmware V3.131 (Use AST-DC firmware updater V1.5.1) Note: use Only if the unit existing display firmware Version is less than V5.000
Asterion DC Multioutput Master Firmware V5.000 (Use AST-DC firmware updater V1.5.1) Note: Only use if the unit existing display firmware Version is V5.000 and above
DocumentAsterion DC Multioutput Master Firmware V5.000 (Use AST-DC firmware updater V1.5.1) Note: Only use if the unit existing display firmware Version is V5.000 and above
Asterion DC Multioutput Virtual Panels V1.1.2
DocumentAsterion DC Multioutput Virtual Panels V1.1.2
IVI-COM w/IVI-C wrapper (ethernet or RS-232 or GPIB) V2.1.9 32-bit
DocumentIVI-COM w/IVI-C wrapper (ethernet or RS-232 or GPIB) V2.1.9 32-bit
IVI-COM w/IVI-C wrapper (ethernet or RS-232 or GPIB) V2.1.9 64-bit
DocumentIVI-COM w/IVI-C wrapper (ethernet or RS-232 or GPIB) V2.1.9 64-bit

Asterion DC ASM Series: Options and Order Information
