SG Series

Model: SG (SGA and SGI) Series
Voltage:
 10V - 1000V
Current:
5A - 6000A
Power:
 4kW - 150kW
Overview:
High Power Modular DC Power Supplies

Note: The SGI Series end-of-life (EOL) was announced on December 16, 2022 with Last Time Buy until December 29, 2023. The recommended replacement products include the SGX Series High Power DC Power Supplies.
Note: The SGA Series remains active and available.


Request A Quote
SG Series - High Power Modular DC Power Supplies
  • Overview
  • Manuals
  • Data Sheets
  • Software
  • Drivers
  • Other
  • Part No.

The Sorensen SG Series (hereafter SG Series) represents the next generation of high power programmable DC power supplies. The SG Series is designed for exceptional load transient response, low noise and the highest power density in the industry. With a full 15 kW available down to 20VDC output in a 3U package the SG Series leads the industry in power density. The power density is enhanced by a stylish front air intake allowing supplies to be stacked without any required clearance between units.

At the heart of the SG series is a 5 kW power module. Depending on the output voltage, one to six modules can be configured in a single chassis to deliver 5 kW to 30 kW of power. Combinations of these chassis can then be easily paralleled to achieve power levels up to 150 kW. Paralleled units operate like one single supply providing total system current. Available in two control versions, the SGA has basic analog controls, while the SGI provides intelligent control features.

SGI: Advanced Intelligent Control
Note: The SGI Series end-of-life (EOL) has been announced. The recommended replacement products include the SGX Series High Power DC Power Supplies.
(Sorensen General purpose Intelligent) The SGI combines onboard intelligent controls with the outstanding power electronics common to all SG family supplies. These controls enable sophisticated sequencing, constant power mode and save/recall of instrument settings. Looping of sequences makes the SGI ideal for repetitive testing. An impressive vacuum fluorescent graphical display in eight languages, context sensitive “soft” keys and front panel keyboard simplify programming of the SGI.

SGA: Outstanding Value - Analog Control
(Sorensen General purpose Analog) The SGA, with its industry leading performance, is available for customers requiring simple front panel analog controls or external control. With the same high performance power electronics as the SGI, the SGA provides essential features like 10- turn potentiometers for setting voltage and current, 3 ½ digit LED readout plus front panel over-voltage protection (OVP) preview/adjustment and reset.

SGI / SGA Comparison Chart
Feature SGA SGI
Modular Design
Fast Load Transient
Parallelable
Analog & Digital Summing Optional
Direct Front Panel V/1 Control
3½ Digit LED Readout
Graphics Display
Sequencing
Save / Recall Setups
System Power Readouts
Constant Power Mode
IEEE-488.2/RS-232C Optional RS-232C Std
IEEE-488.2 Optional
LXI Class C Ethernet/ RS-232 Optional RS-232C Std, Ethernet Optional
Front Panel Dust Filter Optional (3U unit only) Optional (3U unit only)
Applications
Burn-In Compliance Testing
Materials Research Process Control
Product Validation Automotive Electronics
Rackmount ATE Systems Battery Charging
See the SFA product page for very high current slew rate and low stored energy applications.
Operations Manual Japanese SGA
Operations Manual (Japanese) SGI
Operations Manual SGA (rev AH)
Operations Manual SGI (rev AB)
Programming: Ethernet, IEEE, RS232 Rev M SGA
Programming: Ethernet, IEEE, RS232 Rev M SGI
SGA Liquid Cooled User Manual
Title
Document
Download
Operations Manual Japanese SGA
DocumentOperations Manual Japanese SGA
Download Download
Operations Manual (Japanese) SGI
DocumentOperations Manual (Japanese) SGI
Download Download
Operations Manual SGA (rev AH)
DocumentOperations Manual SGA (rev AH)
Download Download
Operations Manual SGI (rev AB)
DocumentOperations Manual SGI (rev AB)
Download Download
Programming: Ethernet, IEEE, RS232 Rev M SGA
DocumentProgramming: Ethernet, IEEE, RS232 Rev M SGA
Download Download
Programming: Ethernet, IEEE, RS232 Rev M SGI
DocumentProgramming: Ethernet, IEEE, RS232 Rev M SGI
Download Download
SGA Liquid Cooled User Manual
DocumentSGA Liquid Cooled User Manual
Download Download
SG Series Data Sheet
SG Series Water Cooled Data Sheet
Title
Document
Download
SG Series Data Sheet
DocumentSG Series Data Sheet
Download Download
SG Series Water Cooled Data Sheet
DocumentSG Series Water Cooled Data Sheet
Download Download
DC Virtual Panels V1.0.10 for Microsoft Windows 7/8/10
Ethernet IP Address Discovery Utility − 5608665-02 SGA
Ethernet IP Address Discovery Utility − 5608665-02 SGI
Firmware Upgrades 4550265-13 RS232_GPIB Master V2.50 (Requires RS232_GPIB Slave Firmware V1.07)
Firmware Upgrades 4550378V4.02 Eth Master V4.02
Firmware Upgrades 4550380V1.96 Eth Slave V1.96
Firmware Upgrades 4550380V1.96 Eth Slave V1.96 SGI
Flash Wizard - Ethernet Only Version 2.10 for Microsoft Windows 7/8/10 SGA
Flash Wizard - Ethernet Only Version 2.10 for Microsoft Windows 7/8/10 SGI
Flash Wizard - RS232_GPIB Only Version 1.0 (GPIB_4540102-01_signed) SGI
GUI ² - V 1.0.0.1 SGA
GUI ² - V 1.0.0.1 SGI
IVI-COM w/IVI-C wrapper (ethernet or RS-232 or GPIB) V2.1.9 32-bit
IVI-COM w/IVI-C wrapper (ethernet or RS-232 or GPIB) V2.1.9 64-bit
Title
Document
Download
DC Virtual Panels V1.0.10 for Microsoft Windows 7/8/10
DocumentDC Virtual Panels V1.0.10 for Microsoft Windows 7/8/10
Download Download
Ethernet IP Address Discovery Utility − 5608665-02 SGA
DocumentEthernet IP Address Discovery Utility − 5608665-02 SGA
Download Download
Ethernet IP Address Discovery Utility − 5608665-02 SGI
DocumentEthernet IP Address Discovery Utility − 5608665-02 SGI
Download Download
Firmware Upgrades 4550265-13 RS232_GPIB Master V2.50 (Requires RS232_GPIB Slave Firmware V1.07)
DocumentFirmware Upgrades 4550265-13 RS232_GPIB Master V2.50 (Requires RS232_GPIB Slave Firmware V1.07)
Download Download
Firmware Upgrades 4550378V4.02 Eth Master V4.02
DocumentFirmware Upgrades 4550378V4.02 Eth Master V4.02
Download Download
Firmware Upgrades 4550380V1.96 Eth Slave V1.96
DocumentFirmware Upgrades 4550380V1.96 Eth Slave V1.96
Download Download
Firmware Upgrades 4550380V1.96 Eth Slave V1.96 SGI
DocumentFirmware Upgrades 4550380V1.96 Eth Slave V1.96 SGI
Download Download
Flash Wizard - Ethernet Only Version 2.10 for Microsoft Windows 7/8/10 SGA
DocumentFlash Wizard - Ethernet Only Version 2.10 for Microsoft Windows 7/8/10 SGA
Download Download
Flash Wizard - Ethernet Only Version 2.10 for Microsoft Windows 7/8/10 SGI
DocumentFlash Wizard - Ethernet Only Version 2.10 for Microsoft Windows 7/8/10 SGI
Download Download
Flash Wizard - RS232_GPIB Only Version 1.0 (GPIB_4540102-01_signed) SGI
DocumentFlash Wizard - RS232_GPIB Only Version 1.0 (GPIB_4540102-01_signed) SGI
Download Download
GUI ² - V 1.0.0.1 SGA
DocumentGUI ² - V 1.0.0.1 SGA
Download Download
GUI ² - V 1.0.0.1 SGI
DocumentGUI ² - V 1.0.0.1 SGI
Download Download
IVI-COM w/IVI-C wrapper (ethernet or RS-232 or GPIB) V2.1.9 32-bit
DocumentIVI-COM w/IVI-C wrapper (ethernet or RS-232 or GPIB) V2.1.9 32-bit
Download Download
IVI-COM w/IVI-C wrapper (ethernet or RS-232 or GPIB) V2.1.9 64-bit
DocumentIVI-COM w/IVI-C wrapper (ethernet or RS-232 or GPIB) V2.1.9 64-bit
Download Download
SG Series LabVIEW Driver
Sorensen Labview Driver V1.0 - Labview 2012 for Microsoft Windows 7/8/10 (32-bit)
Sorensen Labview Driver V1.0 - Labview 2012 for Microsoft Windows 7/8/10 (64-bit)
Sorensen Labview Driver V1.0 - Labview 2013 for Microsoft Windows 7/8/10 (32-bit)
Sorensen Labview Driver V1.0 - Labview 2013 for Microsoft Windows 7/8/10 (64-bit)
Title
Document
Download
SG Series LabVIEW Driver
DocumentSG Series LabVIEW Driver
Download Download
Sorensen Labview Driver V1.0 - Labview 2012 for Microsoft Windows 7/8/10 (32-bit)
DocumentSorensen Labview Driver V1.0 - Labview 2012 for Microsoft Windows 7/8/10 (32-bit)
Download Download
Sorensen Labview Driver V1.0 - Labview 2012 for Microsoft Windows 7/8/10 (64-bit)
DocumentSorensen Labview Driver V1.0 - Labview 2012 for Microsoft Windows 7/8/10 (64-bit)
Download Download
Sorensen Labview Driver V1.0 - Labview 2013 for Microsoft Windows 7/8/10 (32-bit)
DocumentSorensen Labview Driver V1.0 - Labview 2013 for Microsoft Windows 7/8/10 (32-bit)
Download Download
Sorensen Labview Driver V1.0 - Labview 2013 for Microsoft Windows 7/8/10 (64-bit)
DocumentSorensen Labview Driver V1.0 - Labview 2013 for Microsoft Windows 7/8/10 (64-bit)
Download Download
Communication Verification Ethernet
Communication Verification GPIB
Communication Verification RS232
DLM/DCS/SGA/SGI SRQ Generation
Load Line Drop Regulation Test
SGA / SGI FAQs
Title
Document
Download
Communication Verification Ethernet
DocumentCommunication Verification Ethernet
Download Download
Communication Verification GPIB
DocumentCommunication Verification GPIB
Download Download
Communication Verification RS232
DocumentCommunication Verification RS232
Download Download
DLM/DCS/SGA/SGI SRQ Generation
DocumentDLM/DCS/SGA/SGI SRQ Generation
Download Download
Load Line Drop Regulation Test
DocumentLoad Line Drop Regulation Test
Download Download
SGA / SGI FAQs
DocumentSGA / SGI FAQs
Download Download

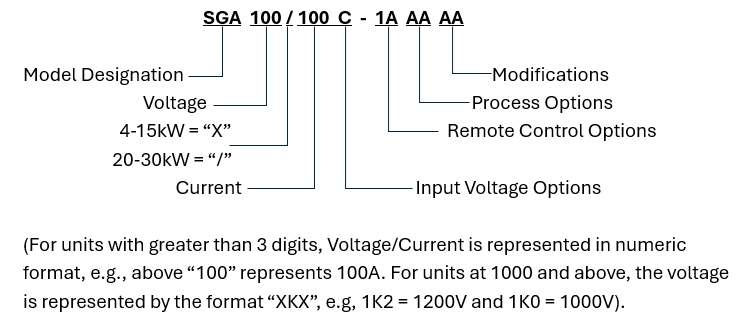

SG : Model Number Description


Options and Accessories
Control Options
A Analog
I Intelligent
Input Voltage Options
C Input Voltage 187 / 242VAC
D Input Voltage 342 / 440VAC
E Input Voltage 396 / 528VAC
Remote Control Options
0A No Options
1A IEEE-488.2 + RS-232C (RS-232 comes standard on SGI
1C Ethernet / RS-232
1D Isolated Analog Control
1E Shaft Locks (SGA series only)
2A Combined Options 1A + !D
2G Combined Options 1C + 1D
2H Combined Options 1C+1E (SGA Only)
2J Combined Options 1D+1E (SGA Only)
3C Combined Options 1A+1D+1E (SGA Only)
3G Combined Options 1C+1D+1E (SGA Only)
Process options
AA No Options
AB AB: Certificate of Calibration to ANSI / NCSL Z540-1 (includes Test Data)
Modifications
AJ Front panel dust filter - factory installed - 3U unit only
CV 400Hz AC input @ 208 VAC ( does not carry CE, CSA or UL marks ) ( 6U only ) STD on 3U
PF Passive power factor correction to 0.9 (Only applicable to 40V, 60V to 800V. Included in 10V-30V and 50V.)
Accessories
890-453-03 Paralleling Cable (for up to 5 units, requires one cable per unit placed in parallel)
K550212-01 3U Rack Slides (for 5kW, 10kW and 15kW models)
K550213-01 6U Rack Slides (for 20kW, 25kW and 30kW models)
K550532-01 Front panel dust filter - field installation kit - 3U unit only
9550589-01 AC input cover - 3U unit only
5551082-01 Optional AC input cover kit - 3U unit only
Contact factory for other combinations
