Model: RS Series
The RS Series consists of multiple high power AC and DC power systems that provide controlled AC and DC output for ATE and product test applications.
This high power AC and DC test system covers a wide spectrum of AC and DC power applications at an affordable cost. Using state-of-the-art PWM switching techniques, the RS series combines compactness, robustness and functionality in a compact floor-standing chassis, no larger than a typical office copying machine. This higher power density has been accomplished without the need to resort to elaborate cooling schemes or additional installation wiring. Simply roll the RS unit to its designated location (using included casters), plug it in, and the RS series is ready to work for you.
The RS Series can be operated completely from its menu driven front panel controller. A backlit LCD display shows menus, setup data, and read-back measurements. IEEE-488, RS232C, USB and LAN remote control interfaces and instrument drivers for popular ATE programming environments are available. This allows the RS Series to be easily integrated into an automated test system. For advanced test applications, the programmable controller version offers full arbitrary waveform generation, time and frequency domain measurements, and voltage and current waveform capture.
The RS90 delivers output up to 90kVA in AC mode and 65% of rated power in DC and AC+DC mode.
For higher power requirements, the RS180, RS270, RS360, RS450 and RS540 models are available. Available reconfigurable RS models (-MB designation) provide multiple controllers which allow separation of the high power system into up to six individual RS90 units for use in separate applications. This ability to reconfigure the system provides an even greater level of flexibility not commonly found in power systems.
Product Evaluation and Test
Increasingly, manufacturers of high power equipment and appliances are required to fully evaluate and test their products over a wide range of input line conditions. The built-in output transient generation and read-back measurement capability of the RS Series offers the convenience of a powerful, and easy to use, integrated test system.
Regenerative, bidirectional “Green” Power Solution

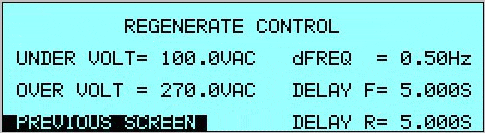

The RS Series features the ability to both source and sink current, i.e. bi-directional current flow. The RS amplifier is designed to reverse the phase relationship between the AC input programming sink (-SNK) mode operation.
With an output frequency range to 819 Hz (or 905 Hz with -HF option), the RS Series is well suited for aerospace applications. Precise frequency control and accurate load regulation are key requirements in these applications. The available IEEE-488 remote control interface and SCPI command language provide for easy integration into existing ATE systems. The RS Series eliminates the need for several additional pieces of test equipment, saving cost and space. Instrument drivers for popular programming environments such as National Instruments LabView™ are available to speed up system integration.
As governments are moving to enforce product quality standards, regulatory compliance testing is becoming a requirement for a growing number of manufacturers. The RS Series is designed to meet AC source requirements for use in compliance testing such as IEC 61000, 3-2, 3-3, 3-11, 3-12, to name a few.
Choice of voltage ranges
Standard voltage ranges are 150V L-N (259V L-L) and 300V (519V L-L) and are direct coupled output. For applications requiring more than 300V L-N (or 519V L-L), the new -333 option provides a dual-range 166 VAC L-N / 333 VAC L-N amplifier output. This new option enables testing of high voltage 480 VAC L-N products at 120% of nominal (576 VAC L-N) as required by IEEE 1547 (Table 1) “Interconnection system response to abnormal voltages”. The optional -HV output transformer provides a third additional 400V L-N and 693 V L-L output range which is internal to the AC chassis. No external magnetics modules are required.
High Crest Factor
With a crest factor of up to 3.6, the RS Series AC source can drive difficult nonlinear loads with ease. Since many modern products use switching power supplies, they have a tendency to pull high repetitive peak currents. The RS90 can deliver up to 720 Amps of repetitive peak current (150 V AC range) per phase to handle high crest factor three phase loads.
Standard RS232C & USB IEEE-488 along with optional LAN remote control interfaces allow programming of all instrument functions from an external computer. The popular SCPI command protocol is used for programming.
Windows® application software is included. This software provides easy access to the power source's capabilities without the need to develop any custom code. The following functions are available through this GUI program:
- Steady state output control (all parameters)
- Create, run, save, reload and print transient programs
- Generate and save harmonic waveforms
- Generate and save arbitrary waveforms
- Measure and log standard measurements
- Capture and display output voltage and current waveforms
- Measure, display, print and log harmonic voltage and current measurements [iX only]
- Display IEEE-488 or RS232C bus traffic to and from the AC Source to help you develop your own test programs.
1. Requires PC running WindowsXP™ or Windows 2000™ / 2007.
Harmonic Waveform Generation
Using the latest DSP technology, the RS Series programmable controller is capable of generating harmonic waveforms to test for harmonics susceptibility. The Windows Graphical User Interface program can be used to define harmonic waveforms by specifying amplitude and phase for up to 50 harmonics. The waveform data points are generated and downloaded by the GUI to the AC source through the remote interface. Up to 200 waveforms can be stored in nonvolatile memory and given a user defined name for easy recall.
All RS Series configurations offer three phase waveform generation, allowing independent phase anomalies to be programmed. It also allows simulation of unbalanced harmonic line conditions.
Arbitrary Waveform Generation
Using the provided GUI program or custom software, the user also has the ability to define arbitrary AC waveforms. The arbitrary waveform method of data entry provides an alternative method of specifying AC anomalies by providing specific waveform data points. The GUI program provides a catalog of custom waveforms and also allows real-world waveforms captured on a digital oscilloscope to be downloaded to one of the many AC source's waveform memories. Arbitrary waveform capability is a flexible way of simulating the effect of real-world AC power line conditions on a unit under test in both engineering and production environments.
RS Series - AC and DC Transient Generation
The RS Series controller has a powerful AC and DC transient generation system that allows complex sequences of voltage, frequency and waveshapes to be generated. This further enhances the RS's capability to simulate AC line conditions or DC disturbances. When combined with the multiphase arbitrary waveform capabilities, the AC and DC output possibilities are truly exceptional. Transient generation is controlled independently yet time synchronized on all three phases. Accurate phase angle control and synchronized transient list execution provide unparalleled accuracy in positioning AC output events.
Transient programming is easily accomplished from the front panel where clearly laid out menu's guide the user through the transient definition process.
RS Series - Measurement and Analysis
The RS Series is much more than a programmable AC, DC or AC+DC power source. It also incorporates an advanced digital signal processor based data acquisition system that continuously monitors all AC source and load parameters. This data acquisition system forms the basis for all measurement and analysis functions. These functions are accessible from the front panel and the remote control interface for the RS Series.
Conventional Measurements [All controllers]
Common AC and DC measurement parameters are automatically provided by the data acquisition system. These values are displayed in numeric form on the front panel LCD display. The following measurements are available: Frequency, Vrms, Irms, Ipk, Crest Factor, Real Power (Watts), Apparent Power (VA) and Power Factor.
The RS Series provides detailed amplitude and phase information on up to 50 harmonics of the fundamental voltage and current (up to 16 kHz). Harmonic content can be displayed in both tabular and graphical formats on the front panel LCD for immediate feedback to the operator. Alternatively, the included GUI program can be used to display, print and save harmonic measurement data. Total harmonic distortion of both voltage and current is calculated from the harmonic data.
The measurement system is based on real-time digitization of the voltage and current waveforms using a 4K deep sample buffer. This time domain information provides detailed information on both voltage and current waveshapes. Waveform acquisitions can be triggered at a specific phase angle or from a transient program to allow precise positioning of the captured waveform with respect to the AC source output. The front panel LCD displays captured waveforms with cursor readouts. The included GUI program also allows acquired waveform data to be displayed, printed, and saved to disk.
Features And Benefits
- High Power AC and DC Power Source
- Programmable AC and DC power for frequency conversion and product test applications
- Expandable Power Levels
- Available output power of 90 kVA per unit and multi-unit configurations for power requirements up to 540 kVA and above
- Arbitrary & Harmonic Waveform Generation
- User defined voltage waveform and distortion programming
- Regenerative, bidirectional "Green" Power Solution
- Automatic crossover between Source and Current Sink power mode offers regenerative capabilities. Regenerate up to 100% of the rated output power back to the utility grid during sink mode operation. (-SNK option)
- Remote Control
- Standard RS232C & USB along with optional IEEE-488 & LAN Interfaces are available for automated test applications
|Options and Accessories|
|Supplied with||Standard: User Manual on CD ROM. Pi version: User/Programming Manual and Software on CD ROM. RS232C serial cable.|
|Input Voltage Settings : Specify input voltage (L-L) setting for each RS system at time of order|
|208||Configured for 208 V ±10 % L-L, 4 wire input|
|230||Configured for 230 V ±10 % L-L, 4 wire input.|
|400||Configured for 400 V ±10 % L-L, 4 wire input.|
|480||Configured for 480 V ±10 % L-L, 4 wire input|
|Standard Model Options : Specify output range on standard models. All range values shown are Line to Neutral.|
|- 150||Configured for 150 V AC and 200 V DC output ranges.|
|- 300||Configured for 300 V AC and 400 V DC output ranges.|
|- 411||*IEC 1000-4-11 test firmware.|
|- LF||Limits maximum frequency to 500 Hz.|
|- FC||Modifies output frequency control to ± 0.25%|
|- LAN||Ethernet Interface|
|- HF||Increases max frequency to 1000 Hz|
|- 413||*IEC 1000-4-13 Harmonics & Interharmonics test firmware.|
|- HV||Adds 400 V L-N AC-only output range|
|- XV||Adds other AC-only output range. Consult factory.|
|- LKM||Clock/Lock Master|
|- LKS||Clock/Lock Auxiliary|
|- WHM||Watt-Hour Measurement option.|
|- SNK||Bidirectional auto source and sink mode. Offers up to 100% power sink capability|
|Avionics Test Routine Options|
|- ABD||ABD0100.1.8 Test Option. -Rev D-E|
|- AMD||Airbus AMD24 Test -Rev A-C|
|- A350||Airbus Test Software -Rev A-C|
|- B787||Boeing 787 Test Software -Rev A-C additional.|
|- 704||Mil Std 704 A - F test - firmware/ software.|
|- 160||RTCA/DO-160D, DO-160E, and EUROCAE test firmware.|
|* Note: Reference the Avionics Test User Manual P/N 4994-971 for a complete listing of performance capabilities.|
|Dual V Range||X|
|IEEE / RS232||X|
